Structural Bearings

Granor’s advanced design capability has been applied to an extensive range of Structural Bearings, from high load capacity Pot Type Bearings to small compact Series “B” Bearings.

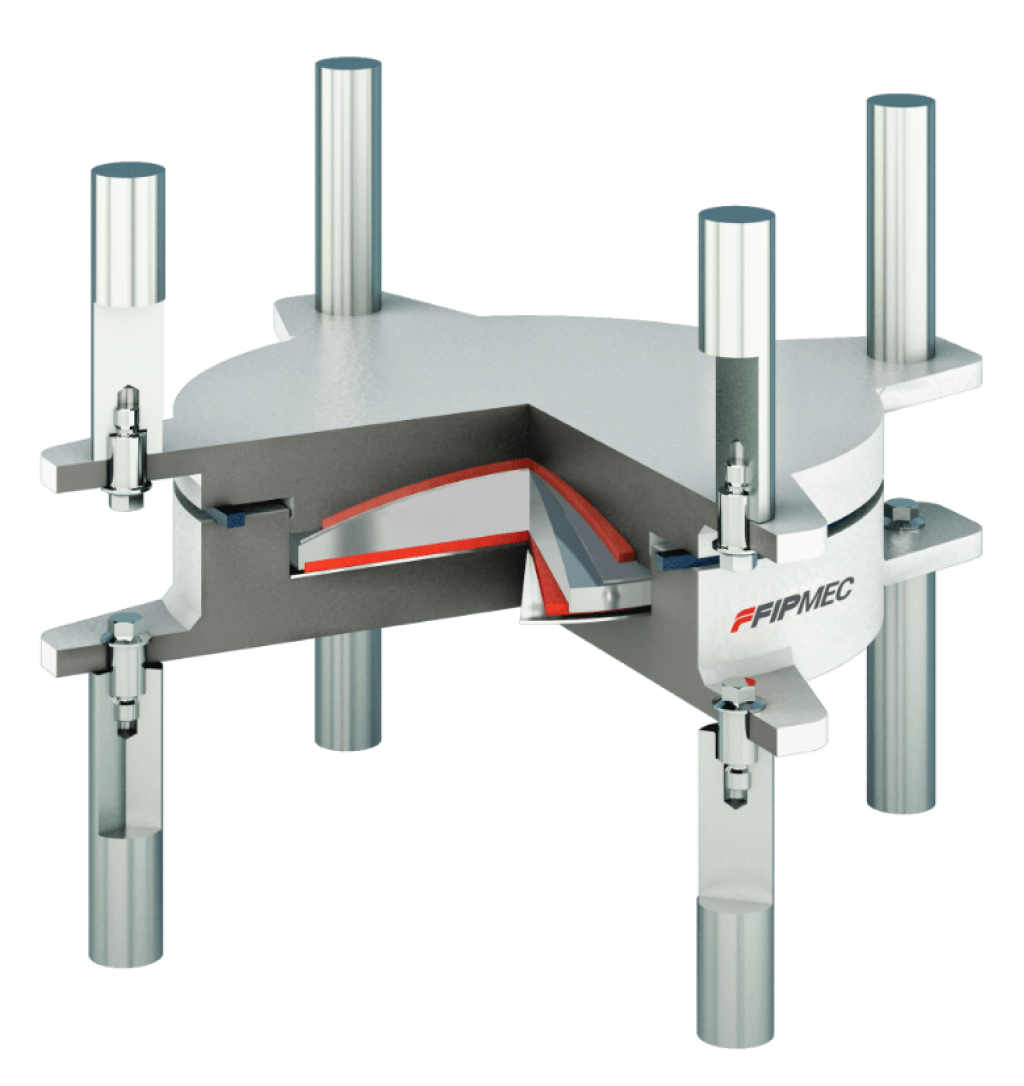

anti-seismic device by Granor

Granor Pot Type

Granor’s Pot Type Structural Bearings are available in three standard configurations.

  • POTSTAY® – Fixed Type – Provides rotational capacity only.
  • POTFLOAT® – Free Float Type – Provides both rotational capacity as well as multi directional sliding.
  • POTGLIDE® – Guided / Sliding Type – Provides rotational capacity, free sliding in one direction only, and is laterally restrained.

Features

  • Compact – Low overall height.
  • Compact – Small footprint for significant vertical loads.
  • Small shift in centre of pressure due to rotation.
  • Low translational resistance.
  • Can accommodate lateral loading at same time as translation.
  • Specials – To accommodate up lift loadings

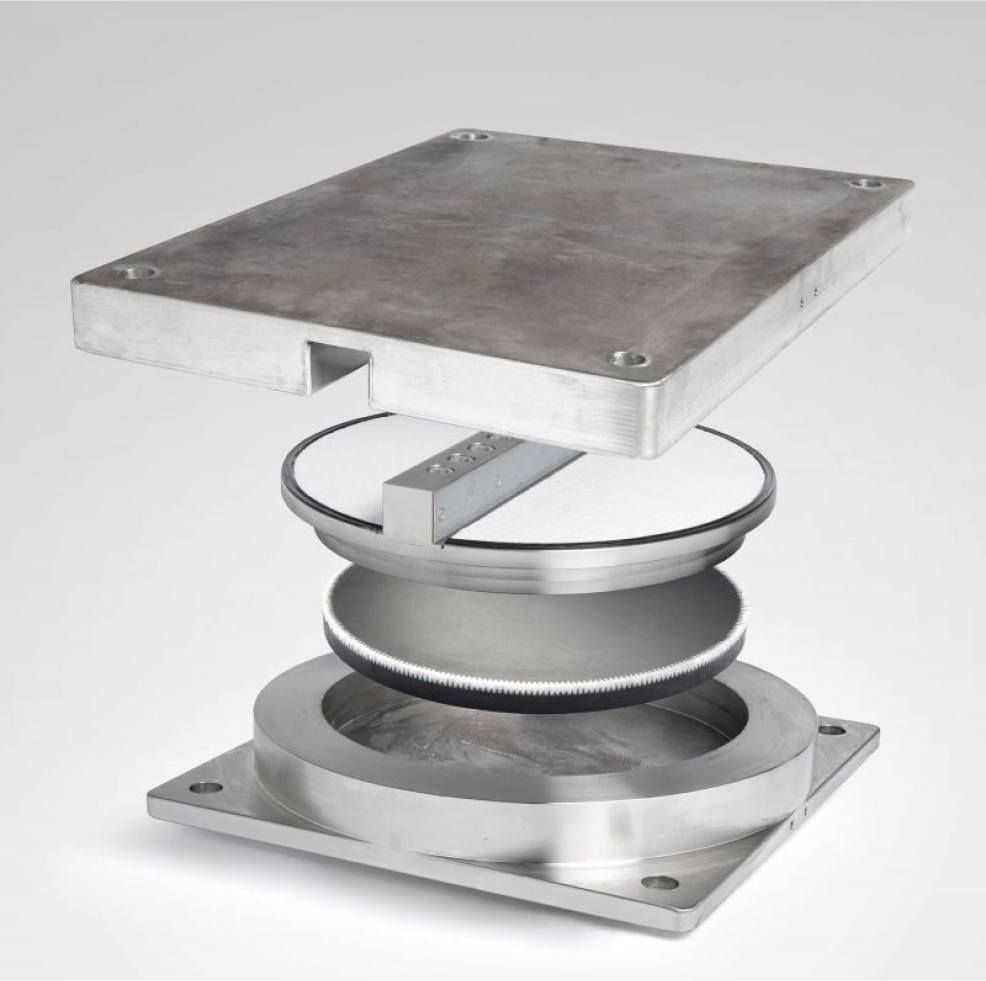

Pot structural bearing by Granor

Granor FIP Spherical Bearings – Series “Sferopol”

Granor FIP Spherical Bearings consist of a concave bearing plate, a convex mating plate, together with upper and lower attachment plates. Sliding surfaces consist of high load bearing low friction materials mated to highly polished stainless steel. Sferepol bearings for Australia and New Zealand are designed in accordance with AS5100.4:2017 and EN1337.

For more information regarding spherical bearings to suit your project, please contact us.

Granor Sferopol FIP structural bearing

Datasheets

Fluorogold Slide Bearings – Series “FSB” Spherical Bearings – Series “Sferopol” Series “D” Slide Bearings Series “BGSU” – Up Lift Restraint Series “B” – Standard
