Anti-Seismic Devices

Granor’s engineered products include specialised systems which are used in bridge construction and other general construction applications.

Granor® provides a full design specification service for customers in the region. Products custom designed and manufactured by FIP Mec include:

  • Fluid Viscous Dampers
  • Lock Up Devices
  • Crane and Industrial Buffers
  • Shock Absorbers
  • Tuned Mass dampers

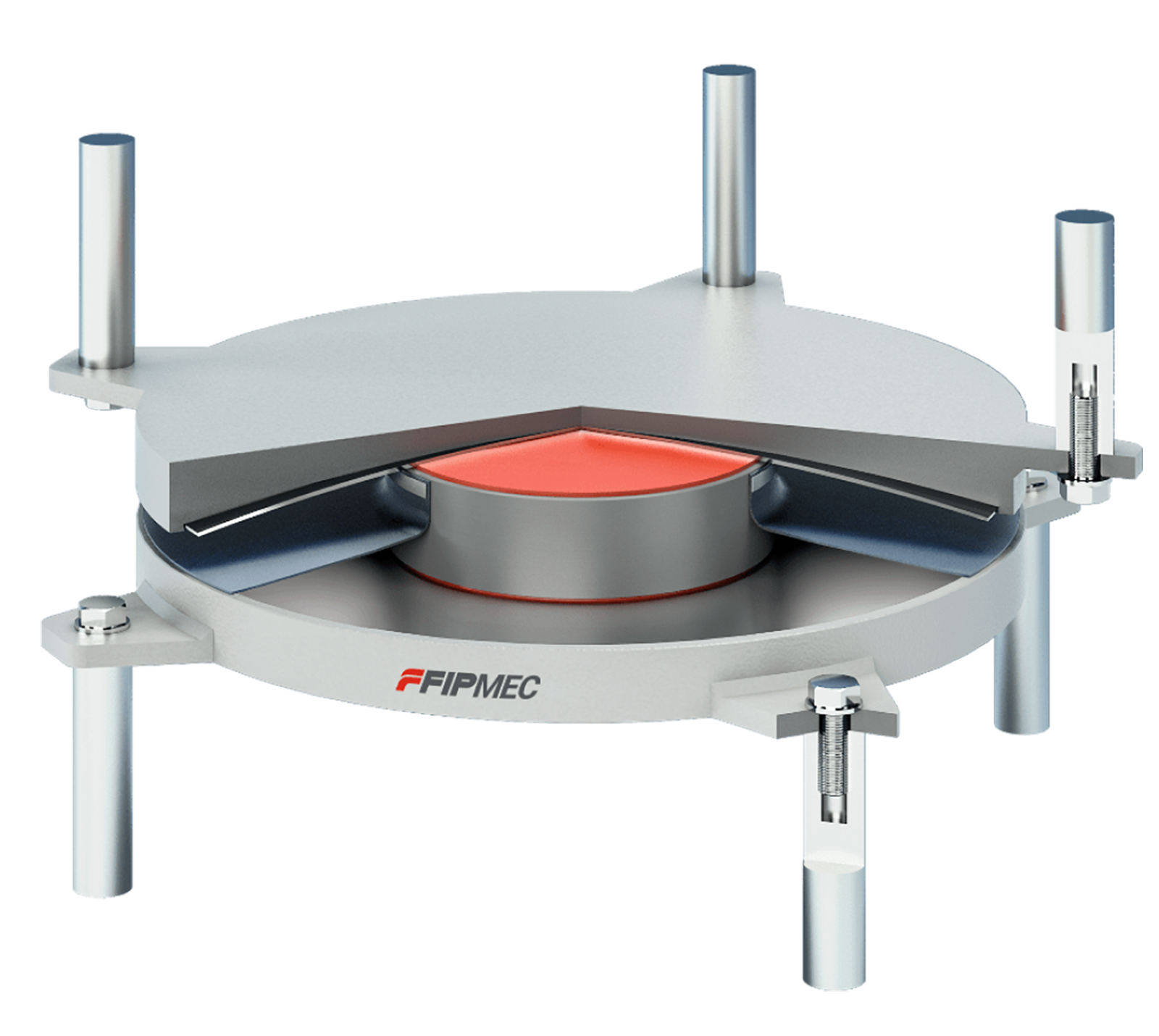

anti-seismic device by Granor

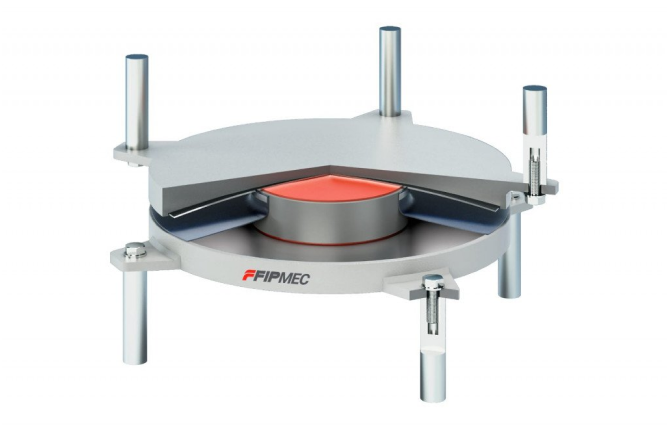

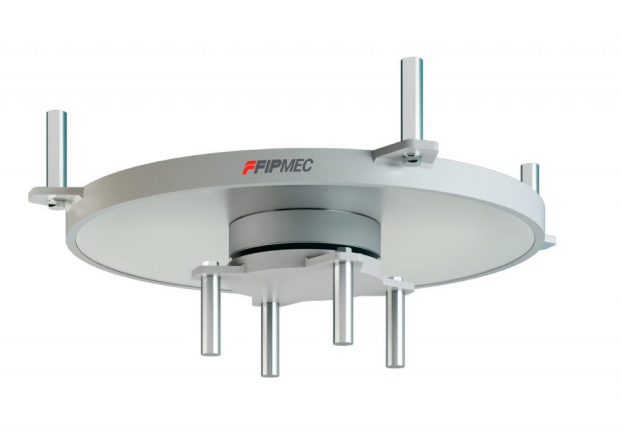

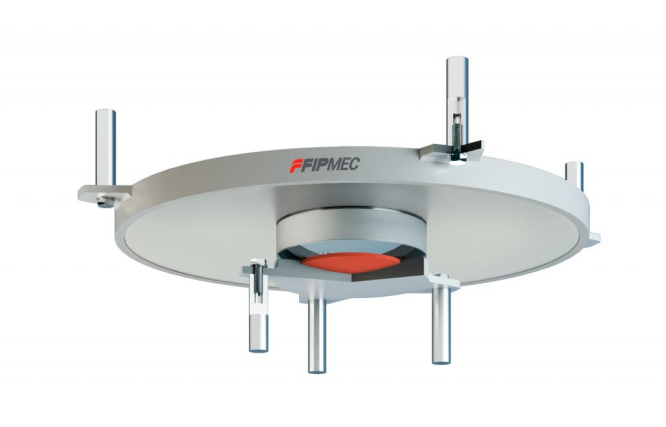

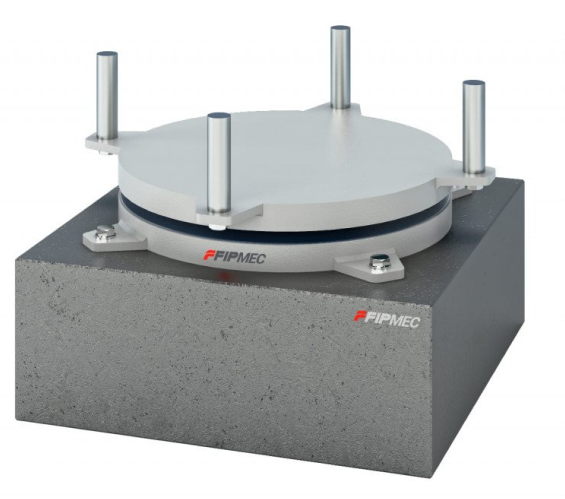

Curved Surface Sliders

The Curved Surface Sliders or Pendulum isolators use gravity as the restoring force. Energy dissipation is provided by friction. The parameters of the bilinear constitutive law depend on the radius of curvature and friction coefficient. The can be designed and manufactured in two main types, with one (FIP series) or two (FIP-D series) primary spherical sliding surfaces that accommodate the horizontal displacement. Usually FIP-D series is preferred because of the smaller plan dimension.

Classification

FIP – [type of friction] [conventional number] / [total displacement (mm)]
( radius of curvature (mm) )

FIP-D – [type of friction] [conventional number] / [total displacement (mm)]
( radius of curvature (mm) )

Datasheets

GRANOR Serrated Baffle Weather Strip Granopoxy Granor SSI Flexpatch FIPMEC - Curved Surface Sliders FIPMEC - Anti Seismic Devices
